About TopIso3D Viewer

TopIso3D Viewer is a free software with a user-friendly graphical interface, that generates three-dimensional maps to analyze descriptors based on the Quantum Theory of Atoms in Molecules (QTAIM), applied in periodic and non-periodic systems. The software also automates the launching of topological analysis calculations through the Topond package and generates a report that facilitates the identification of the values of the calculated descriptors, in the Bond Critical Points (BCP), facilitating the classification of chemical interactions. The map projects created can be stored in the form of HTML files, for later consultation through any type of browser.
#
TopIso3D Viewer was developed for the community of Crystal package and Topond software users, running, in this Version 1, only on Linux operating system. For its use, the optimized system wave functions file (fort.9), generated by the Crystal17© Package, is required. TopIso3D Viewer is ready to be downloaded, in the form of an executable file, compressed in .zip format, through the "Download Software" button above. Once the download is finished, the folder must be unzipped and the executable file must be used from this folder. The TopIso3D Viewer Manual v. 1 is also available for download.

Some projects

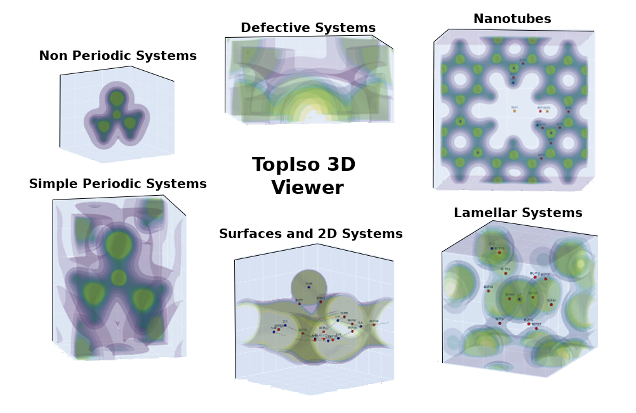

Some projects prepared by our team and the TopIso3D community are available below. They provide information about the analyzed systems and the optimization conditions through the Crystal17© Package. The project can be accessed through the link in the map type.

Urea Molecule

Electron density map

OPTIMIZATION PARAMETERS:

Functional: HSE06; Basis set: pob-TZVP-rev2 (all elements); TOLDEE: 10; TOLINTEG: 10 10 10 10 20; SHRINK: 8 8;

TOPISO3D PARAMETERS:

SURFRHOO; Slices: 100; Opacity: 0.1; Isosurfaces: 10; Min: 0.01 a.u.; Max: 0.5 a.u.

Urea Crystal

Electron density map

OPTIMIZATION PARAMETERS:

Functional: HSE06; Basis set: pob-TZVP-rev2 (all elements); TOLDEE: 10; TOLINTEG: 10 10 10 10 20; SHRINK: 8 8;

TOPISO3D PARAMETERS:

SURFRHOO; Slices: 100; Opacity: 0.1; Isosurfaces: 10; Min: 0.01 a.u.; Max: 0.5 a.u.

MgO

Lap. of electron density map

OPTIMIZATION PARAMETERS:

Functional: B3LYP; Basis set: Mg_8-511G_harrison_1994, O_m-6-311G(d)_Heyd_2005; TOLDEE: 9; TOLINTEG: 7 7 7 7 9; TOLDEG: 0.003; TOLDEX: 0.012; SHRINK: 12 12;

TOPISO3D PARAMETERS:

SURFLAPP; Slices: 100; Opacity: 0.2; Isosurfaces: 7; Min: -0.5 a.u.; Max: 0.5 a.u.

Metallic Cu

Beck ELF map

OPTIMIZATION PARAMETERS:

Functional: PWGGA; Basis set: Cu_86-4111(41D)G_doll_2000; TOLDEE: default; TOLINTEG: default; TOLDEG: default; TOLDEX: default; SHRINK: 12 12;

TOPISO3D PARAMETERS:

SURFELFB; Slices: 100; Opacity: 0.1; Isosurfaces: 5; Min: 0 a.u.; Max: 0.2 a.u.

Li2O

Electron density map

OPTIMIZATION PARAMETERS:

Functional: B3LYP; Basis set: Li_5-11(1d)G_baranek_2013_LiNbO3, O_6-31d1_corno_2006; TOLDEE: default; TOLINTEG: default; TOLDEG: default; TOLDEX: default; SHRINK: 8 8;

TOPISO3D PARAMETERS:

SURFELFB; Slices: 100; Opacity: 0.1; Isosurfaces: 5; Min: 0 a.u.; Max: 0.1 a.u.

K4Nb6O17

Electron density map

OPTIMIZATION PARAMETERS:

Functional: B3LYP-D3; Basis set: O_8-411d11f_mahmoud_2013, K_SC_HAYWSC-31(1d)G_baranek_2013_KNbO3, Nb_SC_HAYWSC-31(31d)G_baranek_2013_KNbO3; TOLDEE: 10; TOLINTEG: 10 10 10 10 20; TOLDEG: 0.0001; TOLDEX: 0.0004; SHRINK: 4 4;

TOPISO3D PARAMETERS:

SURFELFB; Slices: 100; Opacity: 0.1; Isosurfaces: 2; Min: 0.010 a.u.; Max: 0.015 a.u.

We encourage our users to submit projects so that we can share and publicize their work.
